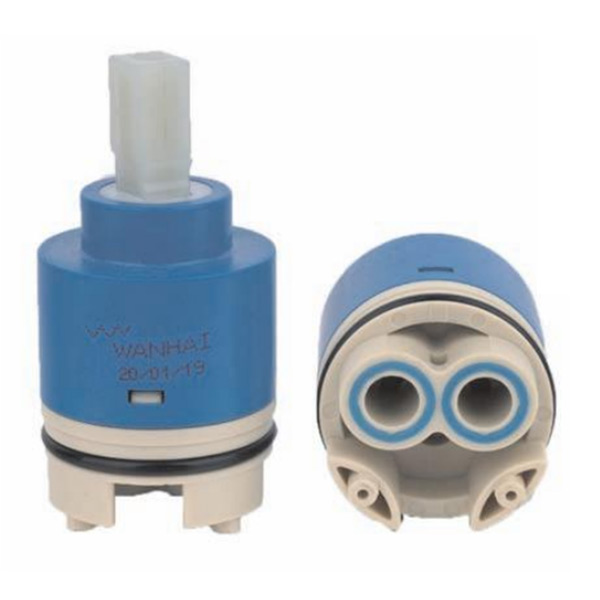

Wanhai Cartridge 40H-1 40mm Low Torque Cartridge with Distributor

Minimum Opening Angle 23°

Maximum Turning Angle 100°

Maximum Temperature 95°C

Lever Break Torque ≥12N.m

Tightening Torque 8-10N.m

  • single lever mixer tap cartridge

Specification of 40H-1 40mm Low Torque Cartridge with Distributor


Pressure VS Average Flow Rate

P. (bar)0.511.522.533.544.55
F. (I/min)141618.520.622.32425.826.628.531

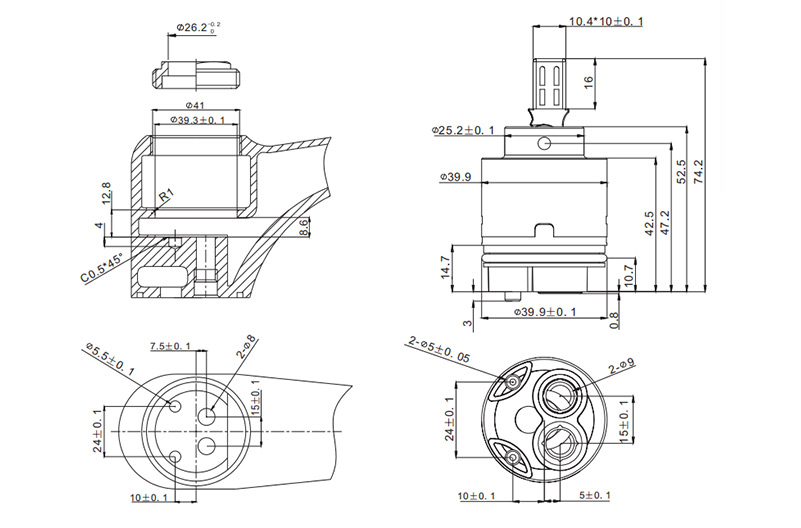

40H-1 40mm Low Torque Cartridge with Distributor Drawing

40H-1 40mm Low Torque Cartridge with Distributor Drawing
