Wanhai Cartridge 35D-10 35mm Side-outlet Cartridge

Minimum Opening Angle 23°

Maximum Turning Angle 100°

Maximum Temperature 95°C

Lever Break Torque ≥12N.m

Tightening Torque 8-10N.m

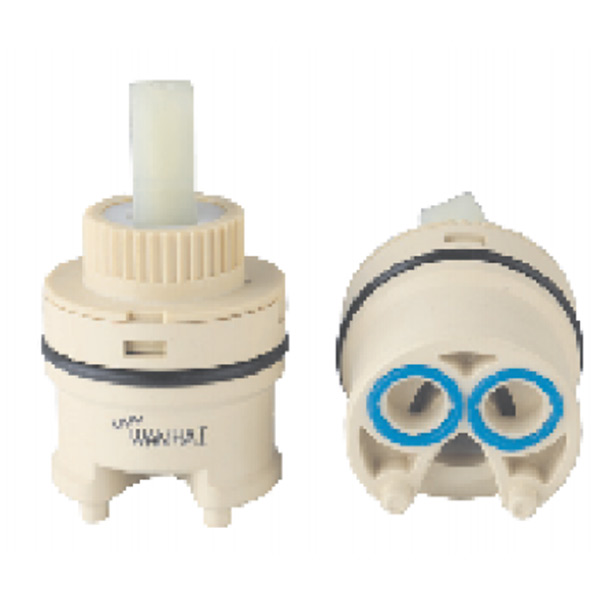

  • 35mm ceramic disc cartridge

Specification of 35D-10 35mm Side-outlet Cartridge


Pressure VS Average Flow Rate

P. (bar)0.511.522.533.544.55
F. (I/min)7.510.512.714.716.217.719.220.421.522.8

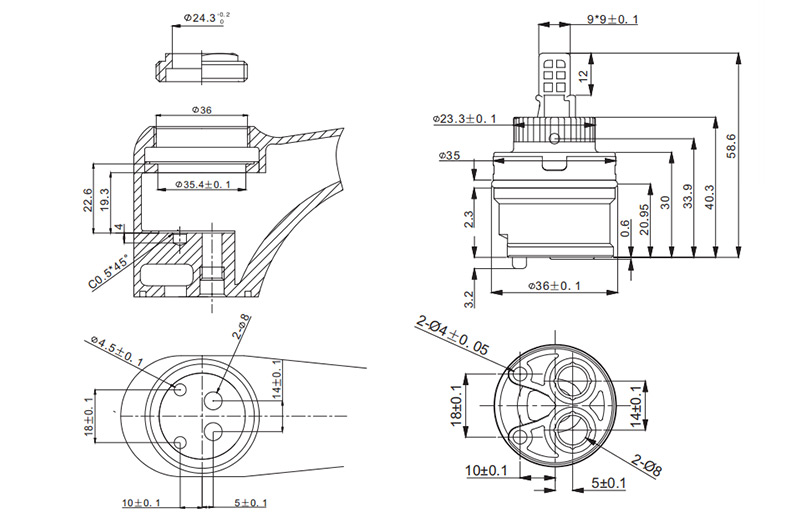

35D-10 35mm Side-outlet Cartridge Drawing

35D-10 35mm Side-outlet Cartridge Drawing
